Breath of the Wild – Ancient Arrow Design Files

File Formats: .STL, .TXT, .PNG
Total File Size: Varies by component (largest: 7.54 MB)
3D Printable Parts & Assembly Instructions

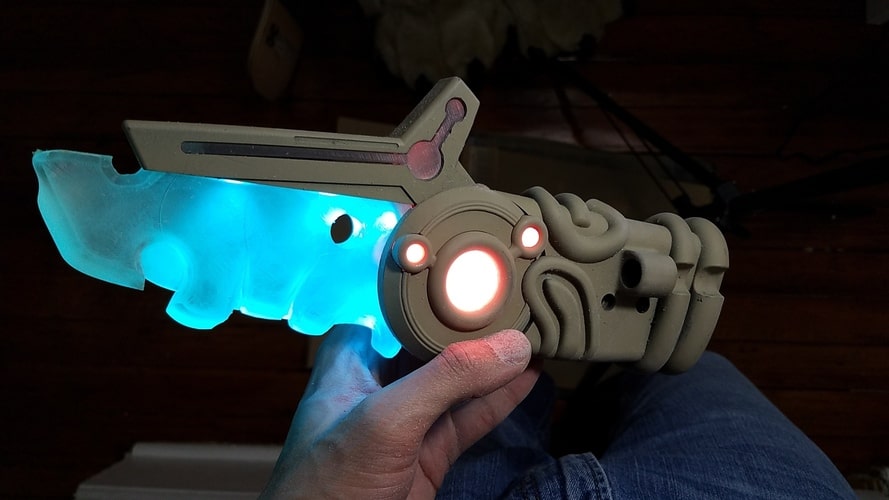

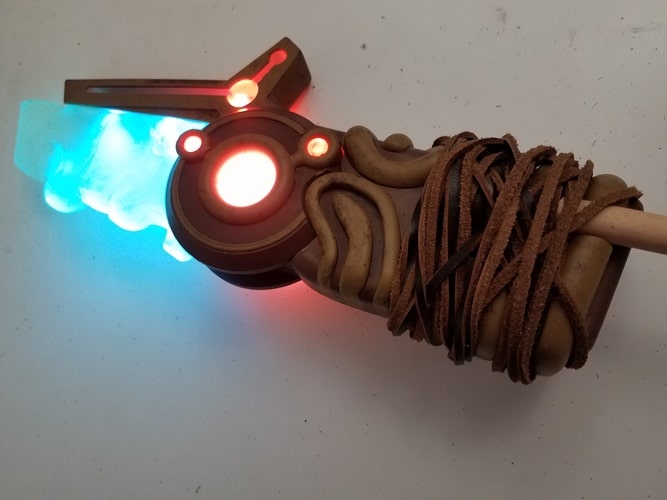

Recreate the legendary Ancient Arrow from The Legend of Zelda: Breath of the Wild with this meticulously designed set of 3D printable files. This collection includes everything you need to bring the iconic arrow to life, from detailed arrow parts to accompanying diffusers and assembly components.

Components Included:
• Arrow Parts: MediumDiffuser.stl, SmallDiffuserRight.stl, CircleCaseLeft.stl, BackCover.stl, TopCap.stl, TopDiffuser.stl, CenterDiffuser.stl, Crystal.stl, CircleCaseRight.stl, SmallDiffuserLeft.stl, FeatherMount.stl
• Assembly Files: ArrowCode.txt (for programming integration)
• Circuit Components: CircuitDiagram.png (for easy understanding of internal setup)

Key Features:
• Precision Design: Each component of the Ancient Arrow is designed for both aesthetic accuracy and functional 3D printing
• Perfect for Fans & Builders: Ideal for collectors, cosplayers, or DIY enthusiasts who want to create a high-quality replica
• Comprehensive Set: Includes detailed 3D models for every part, along with instructions and diagrams for easy assembly
• Multiple Formats: Compatible with most 3D printers for at-home crafting

Whether you’re adding it to your display case or incorporating it into a larger project, this set offers an immersive experience for Breath of the Wild enthusiasts and creators.

1. MediumDiffuser.stl
File Size: 608 KB
Description: The Medium Diffuser is a key component in diffusing light (or energy) within the arrow assembly. It ensures even distribution and enhances the overall visual appeal when paired with the crystal and other diffusing components.

2. SmallDiffuserRight.stl
File Size: 603 KB
Description: The Small Diffuser (Right) is designed to fit the right section of the arrow, contributing to a balanced diffusion system. It’s perfect for creating a soft glow effect when illuminated, ensuring the arrow’s intricate features shine.

3. CircleCaseLeft.stl
File Size: 1.35 MB
Description: The Circle Case (Left) is the left casing that holds multiple internal components, such as diffusers and possibly electronics, providing stability and secure housing for the parts that make up the Ancient Arrow.

4. BackCover.stl
File Size: 7.54 MB
Description: The Back Cover is an essential structural element, designed to secure all internal components together. It provides a clean, polished exterior to the arrow, ensuring that all parts are neatly enclosed.

5. TopCap.stl
File Size: 207 KB
Description: The Top Cap is the finishing piece that sits atop the arrow, giving it a sleek and complete appearance. It is designed to fit snugly into place and can be enhanced with light or aesthetic effects depending on your project.

6. TopDiffuser.stl
File Size: 59.3 KB
Description: The Top Diffuser is a small but crucial part that helps to soften and spread light or energy from the tip of the arrow, ensuring a smooth, glowing effect that enhances the overall look when lit.

7. CenterDiffuser.stl
File Size: 1.05 MB
Description: The Center Diffuser is placed centrally within the arrow’s body, ensuring an even spread of light or energy across the entire structure. It acts as the core diffusing component, providing balance and visual harmony to the design.

8. Crystal.stl
File Size: 738 KB
Description: The Crystal component is the focal point of the Ancient Arrow’s design. It represents the powerful core of the arrow and is often the most visually striking part, either through its design or material transparency.

9. CircleCaseRight.stl
File Size: 1.35 MB
Description: The Circle Case (Right) mirrors the left counterpart, forming the other half of the arrow’s body. It securely holds and integrates with the arrow’s internal mechanisms, offering symmetry and durability to the entire structure.

10. SmallDiffuserLeft.stl
File Size: 603 KB
Description: The Small Diffuser (Left) is designed for the left portion of the arrow, contributing to the overall diffusion system. It ensures that the arrow’s internal lights or effects are distributed symmetrically and evenly.

11. FeatherMount.stl
File Size: 1.34 MB
